Wheel hydraulic excavator
Specifications
-
Country of Manufacture
PRC -
Engine
Weichai-
Power124 kW
-
Torque810 Nm
-
-
Boom
5700 mm-
TypeStd.
-
Boom cylinder
Two-
Cylinder diameter120 mm
-
Piston stroke1335 mm
-
-
-
Arm
2925 mm-
TypeStd.
-
Arm cylinder
One-
Cylinder diameter135 mm
-
Piston stroke1490 mm
-
-
-
Basic equip.
Bucket-
Capacity1.0 m³
-
-
Max. dumping height
-
Bucket7.17 m
-
-
Optional equipment (ahead)

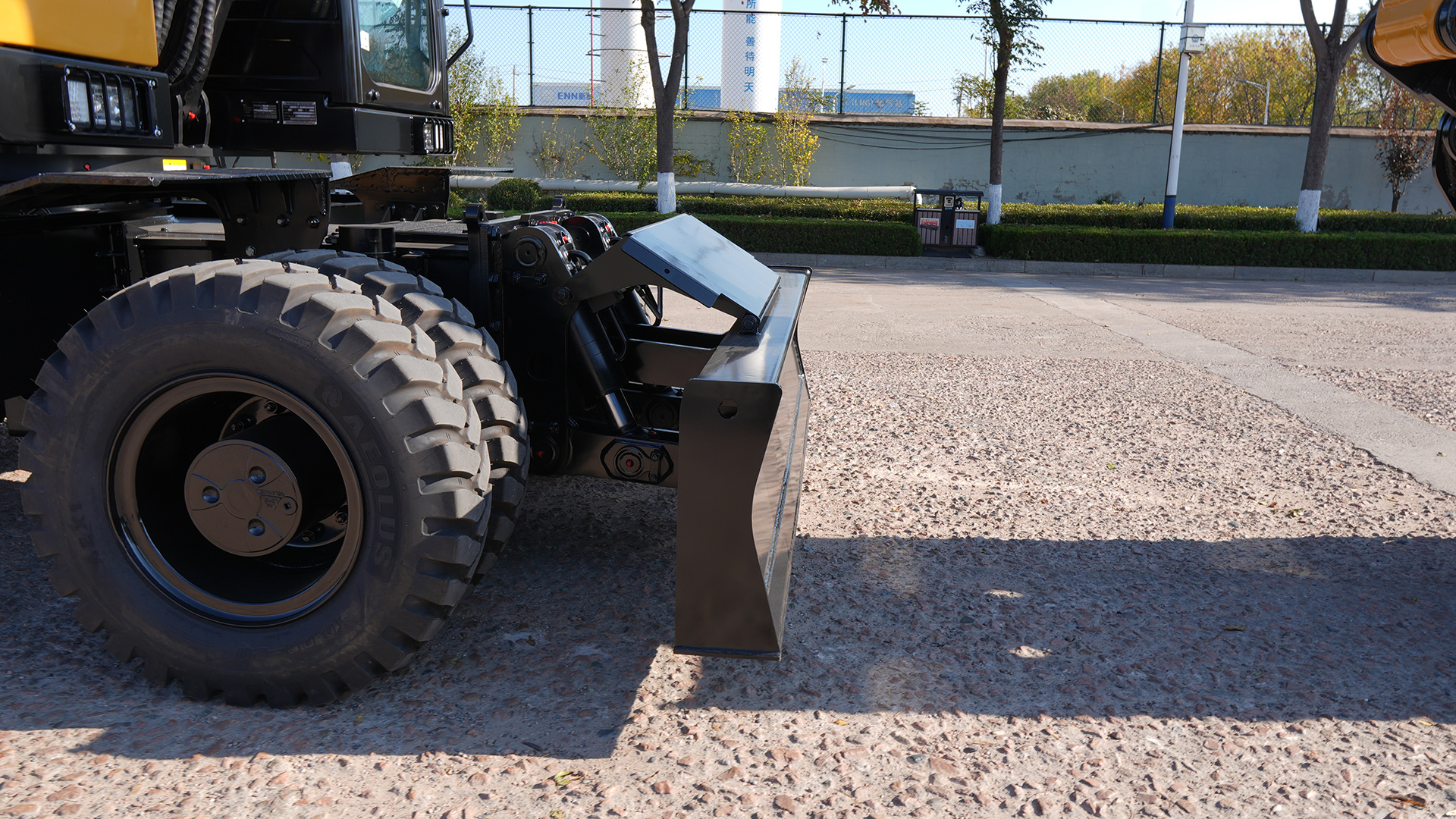

Blade -
Optional equipment (back)

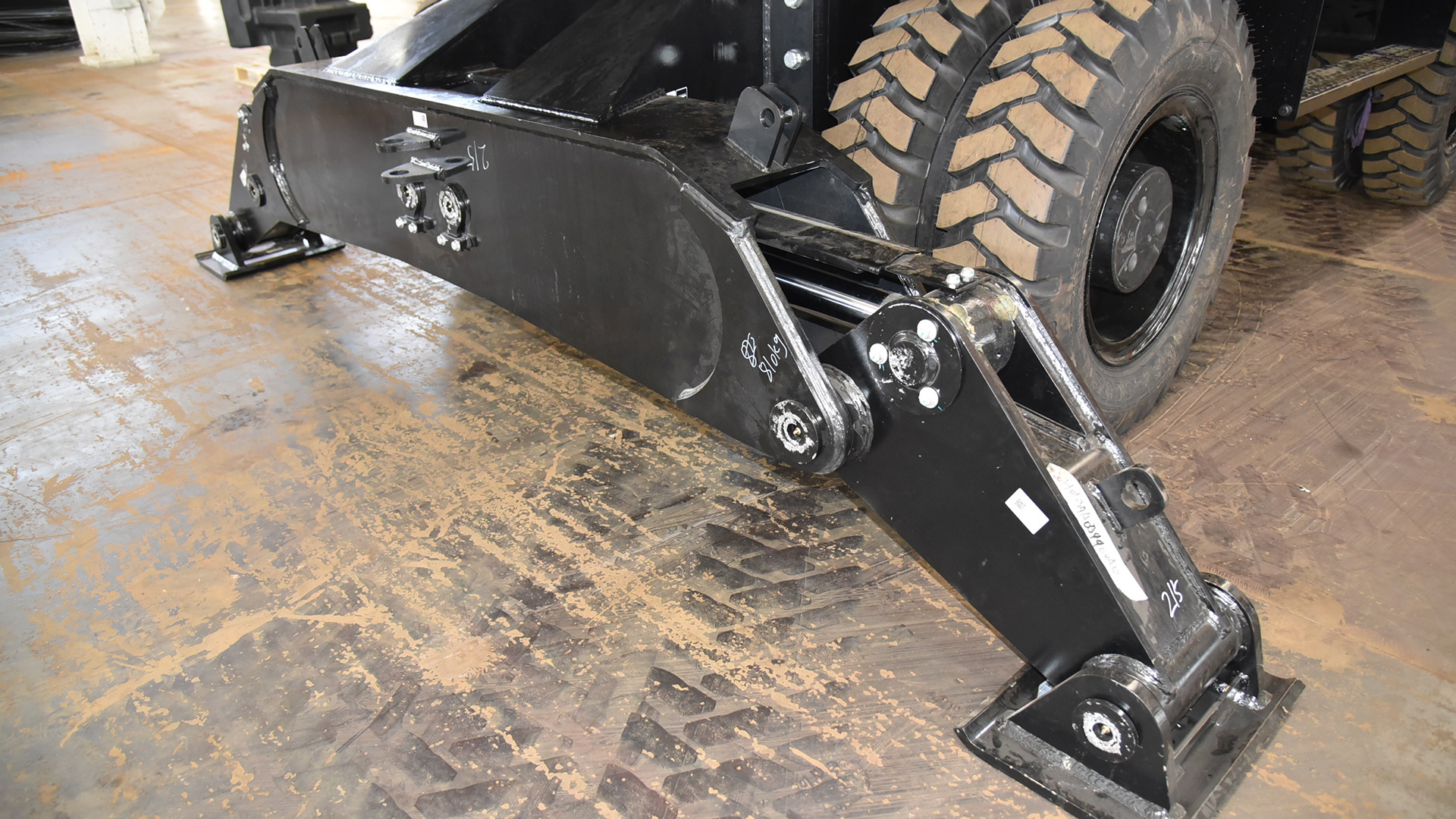

Outriggers -
Force
-
Bucket digging force147 kN
-
Arm digging force104 kN
-
Max. traction force120 kN
-
-
Operating weight
23.0

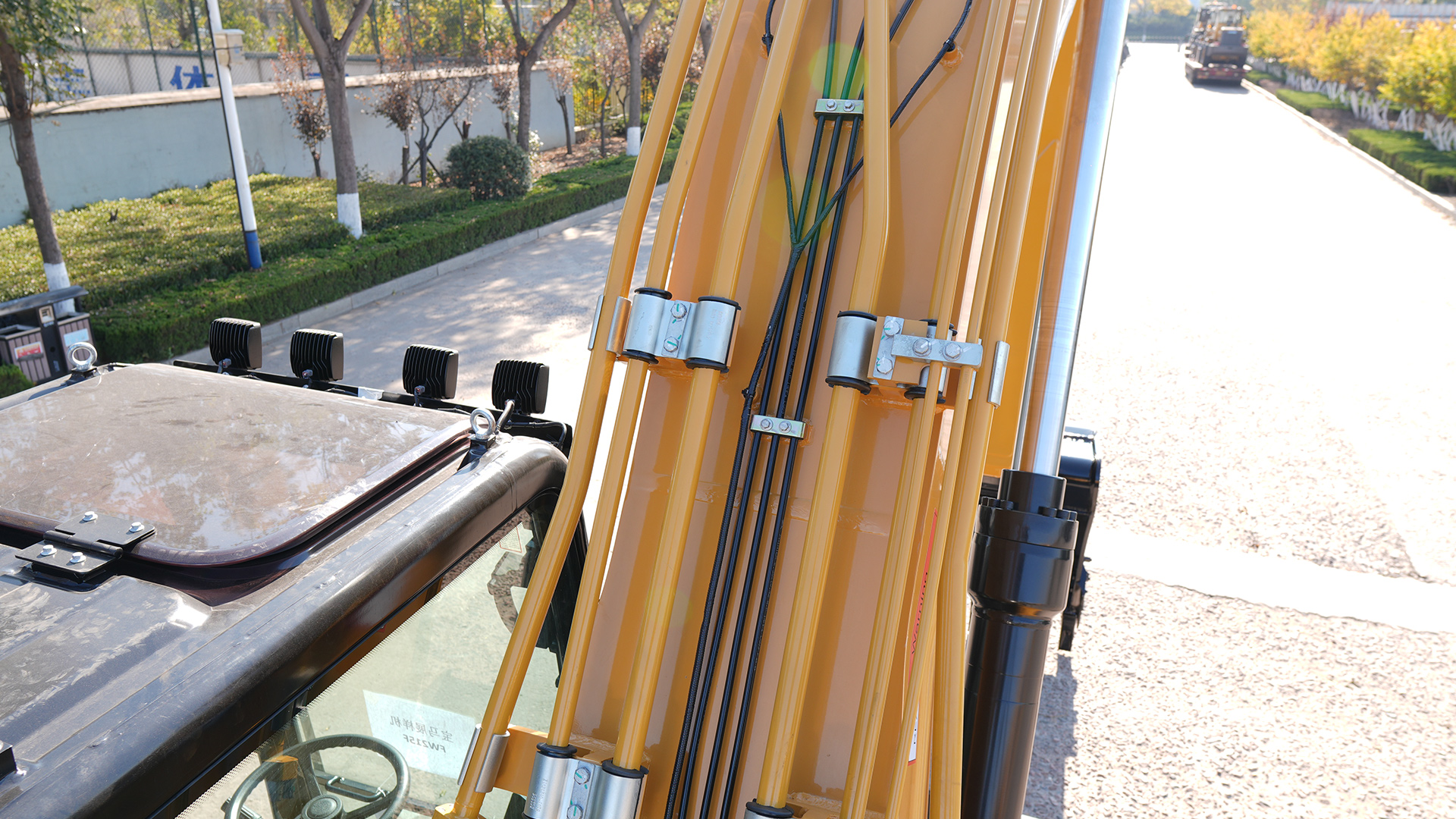

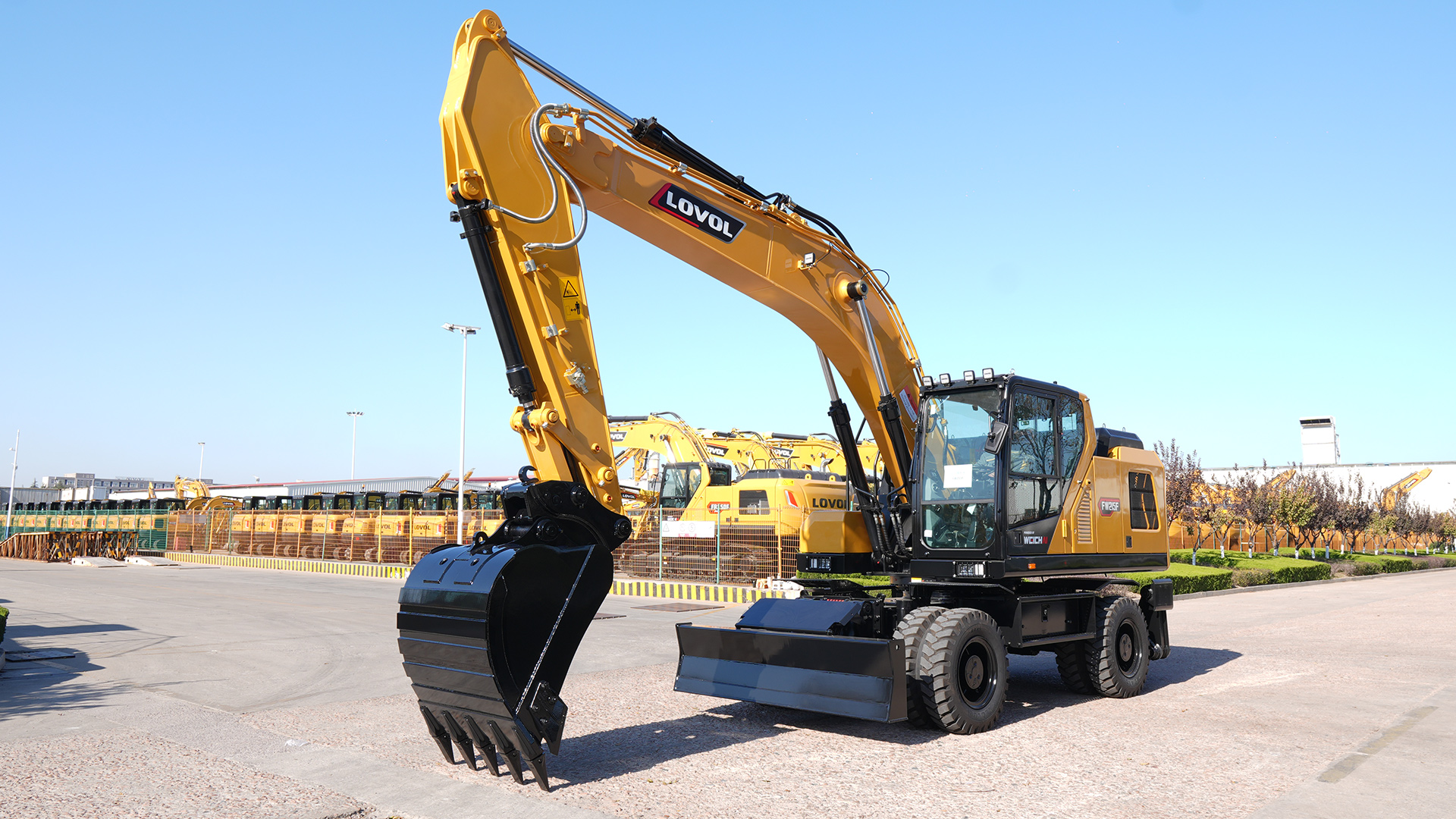

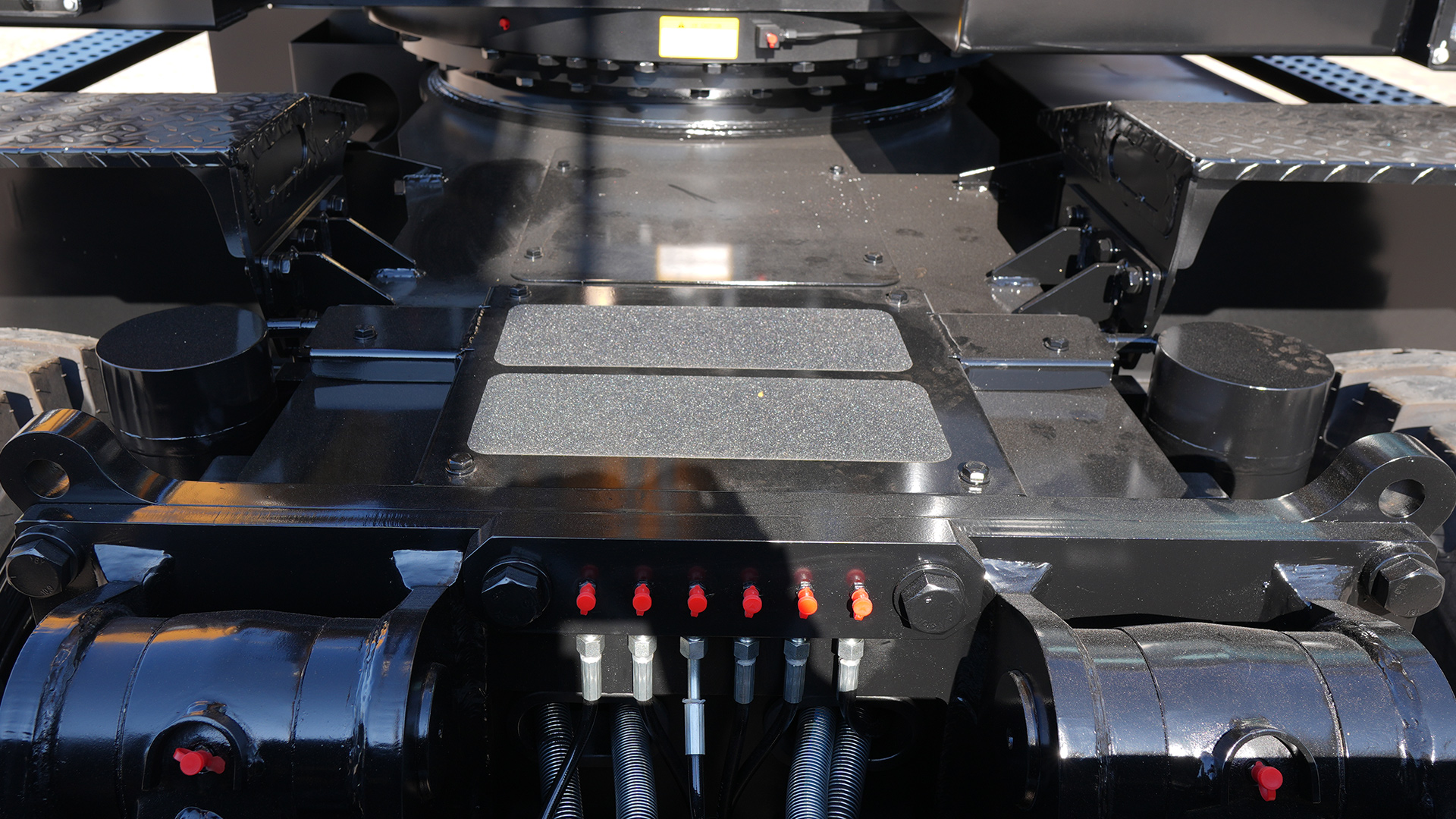

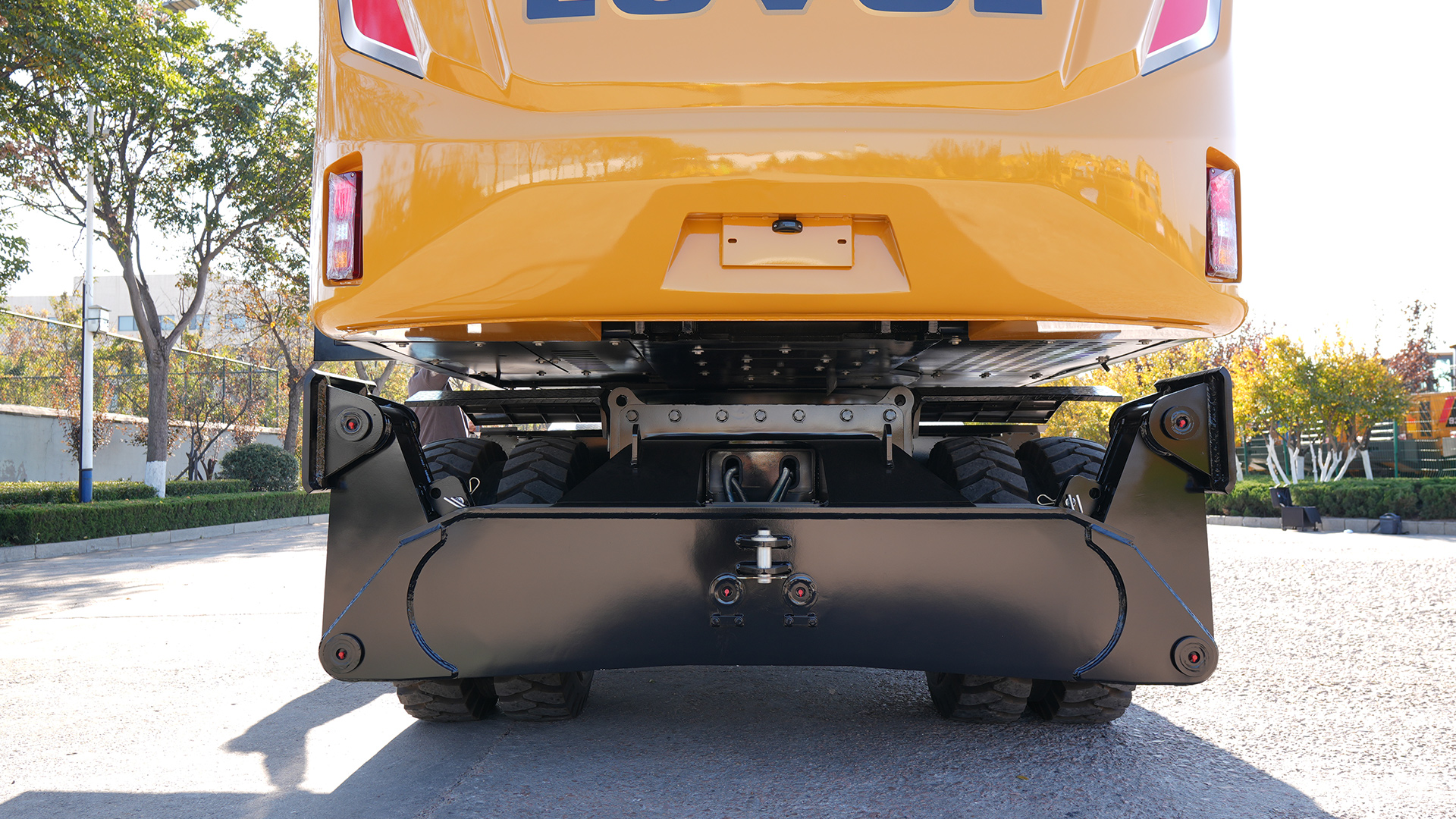

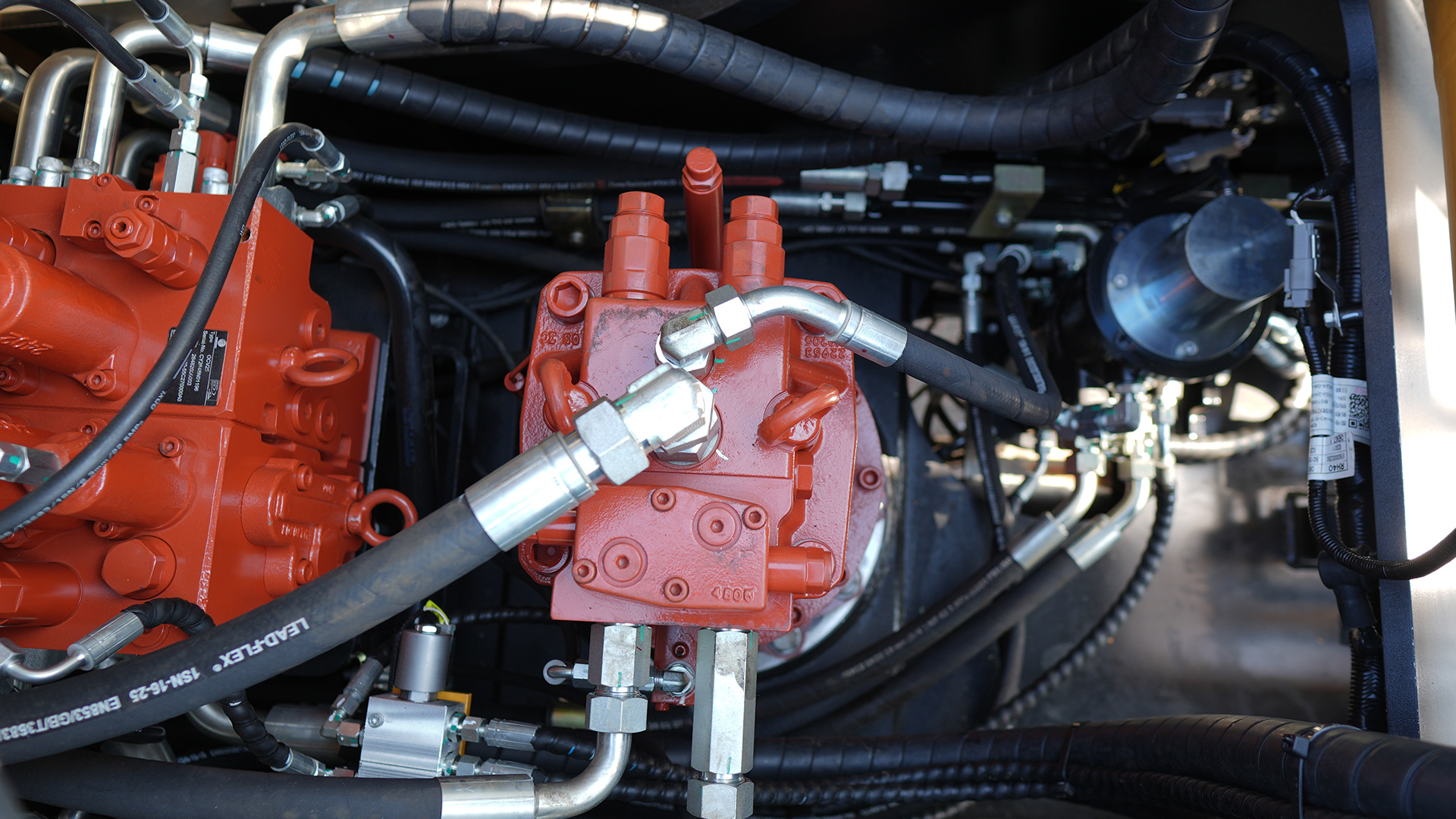

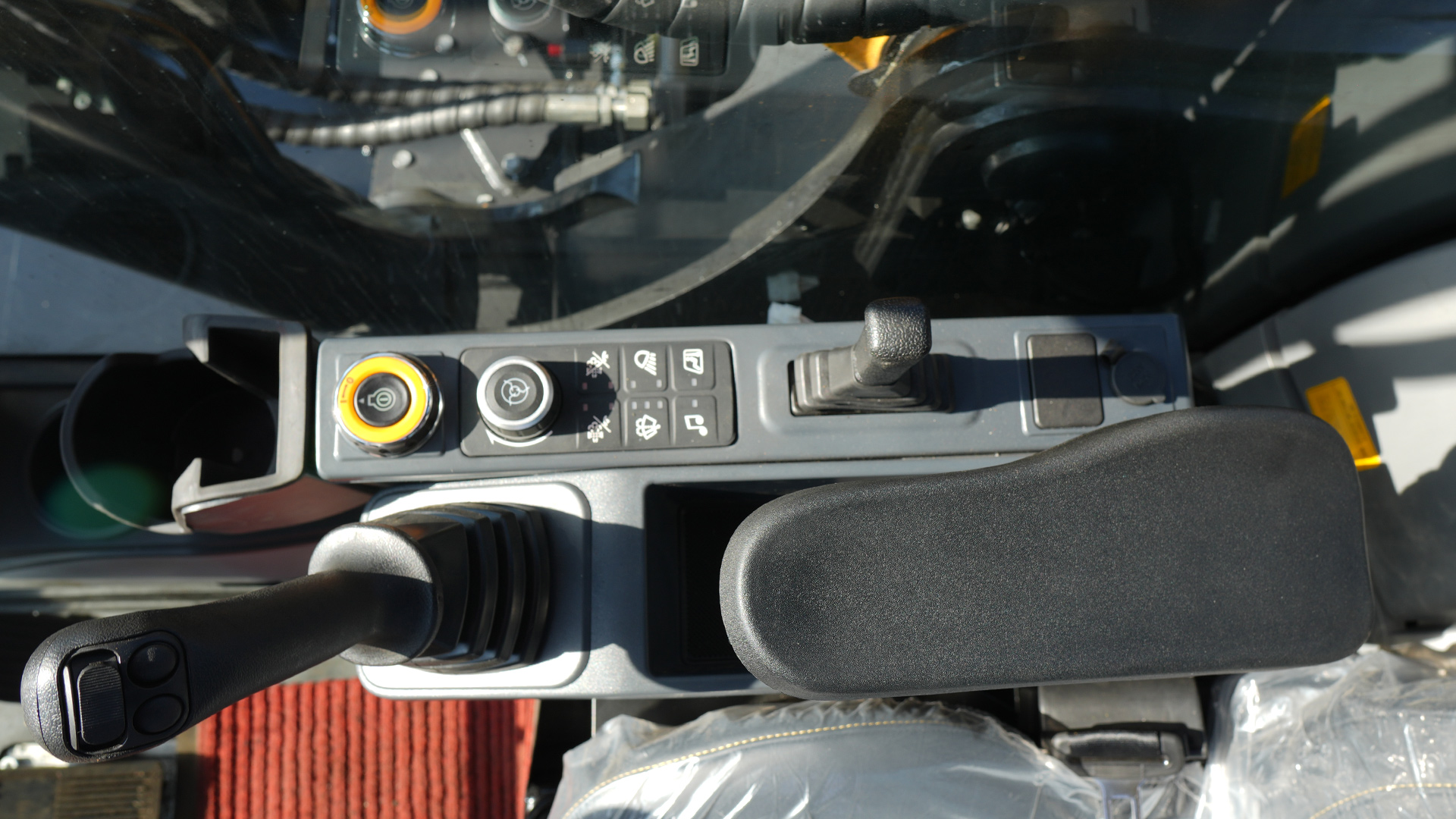

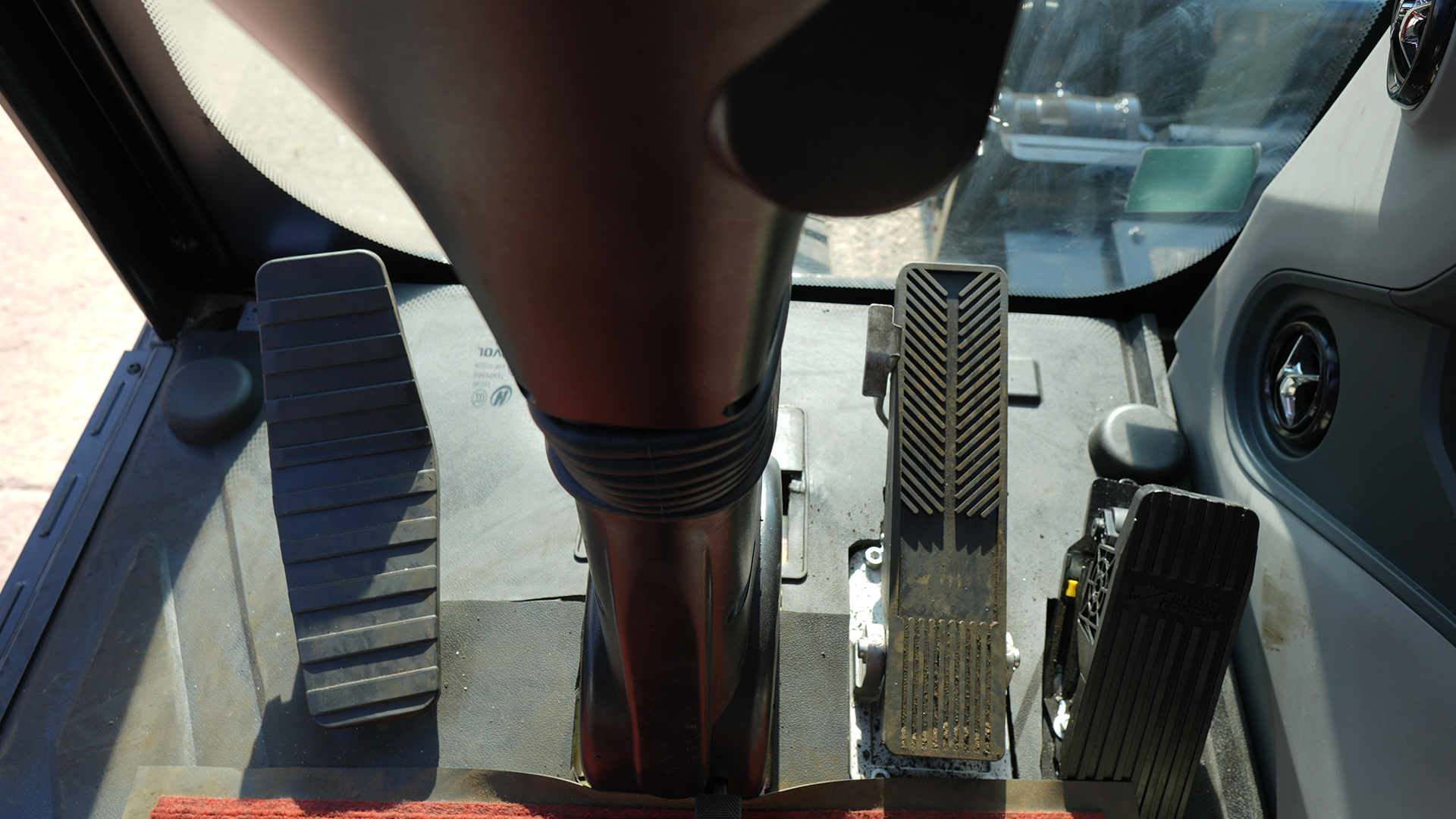

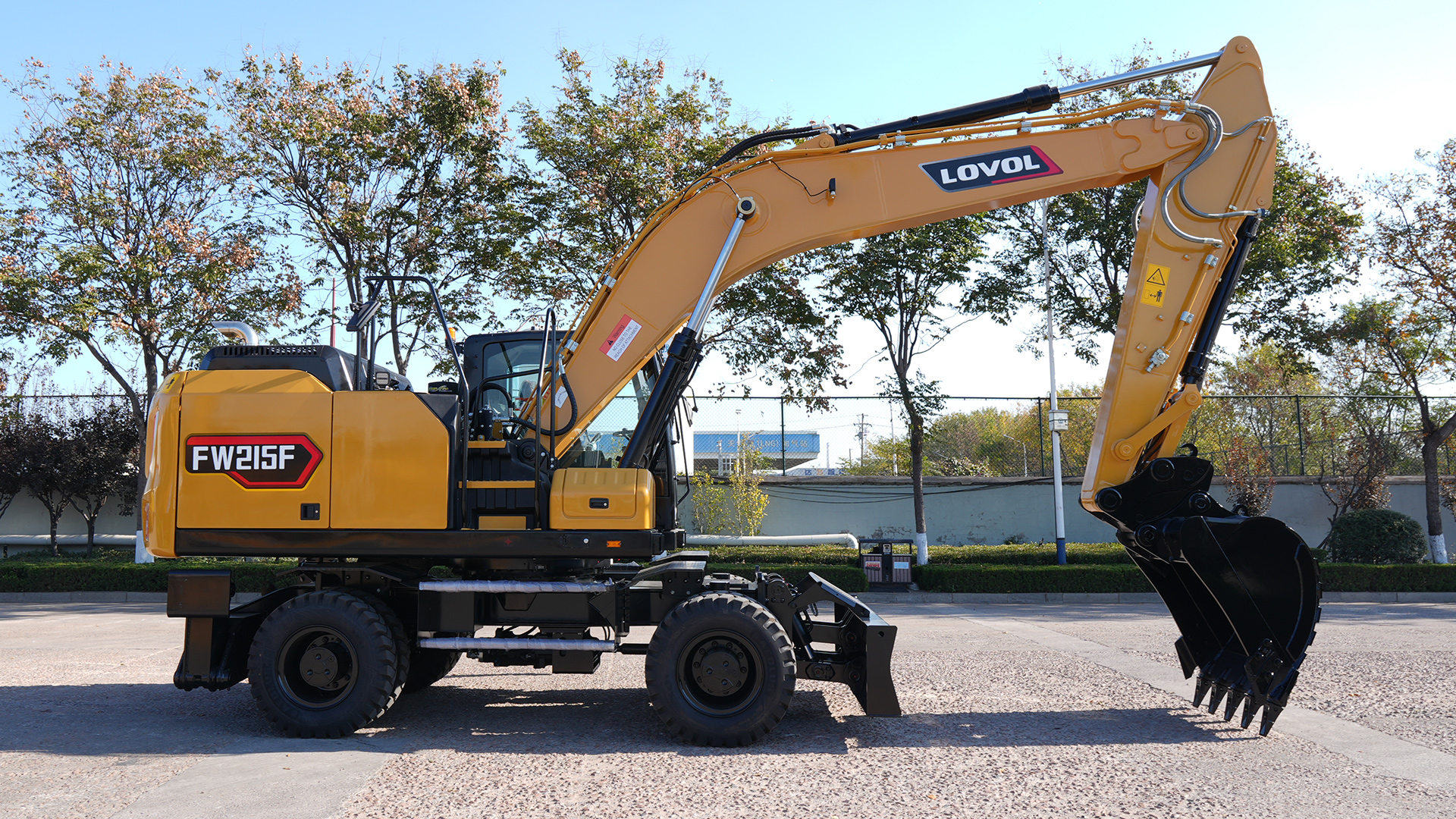

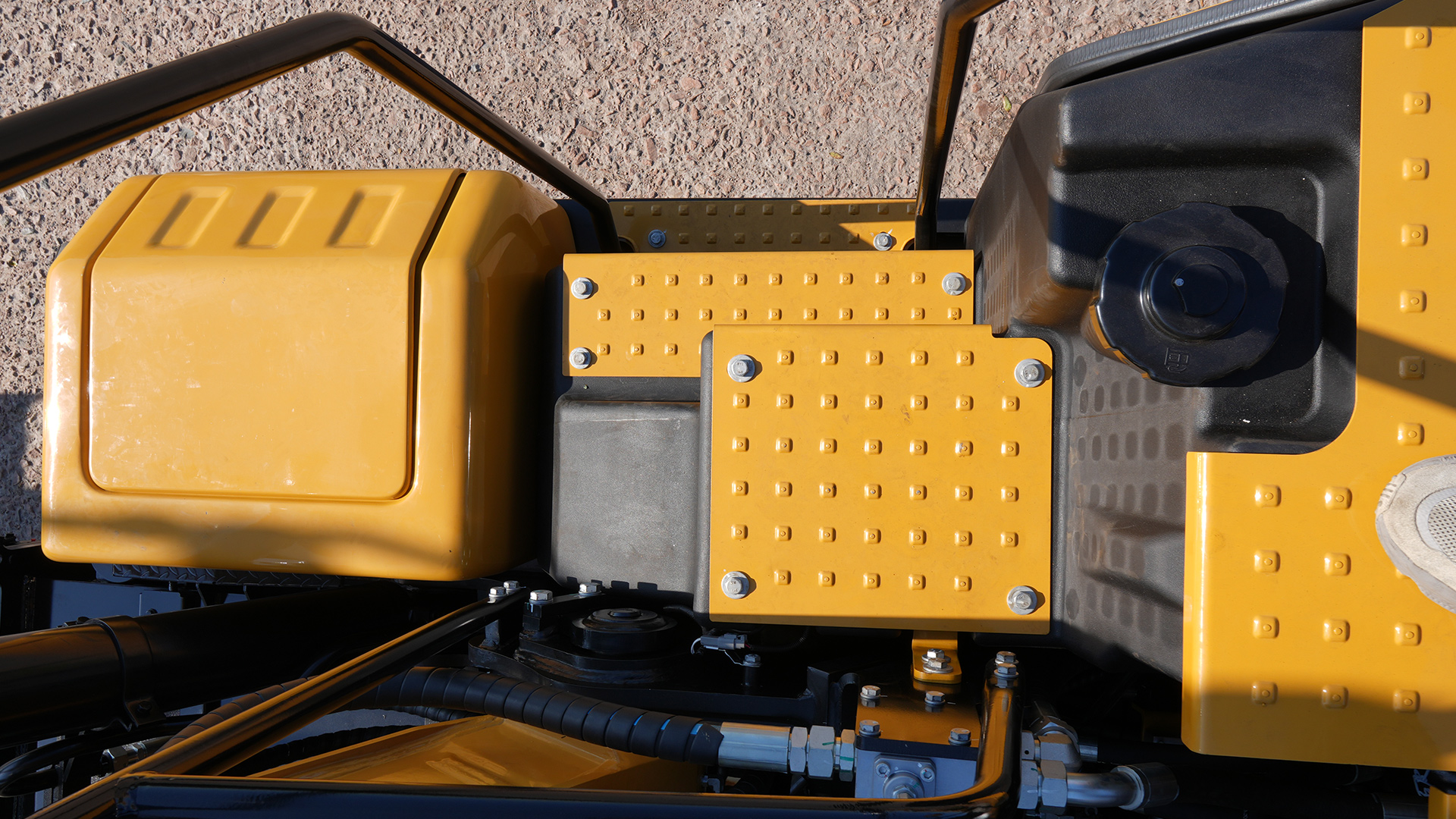

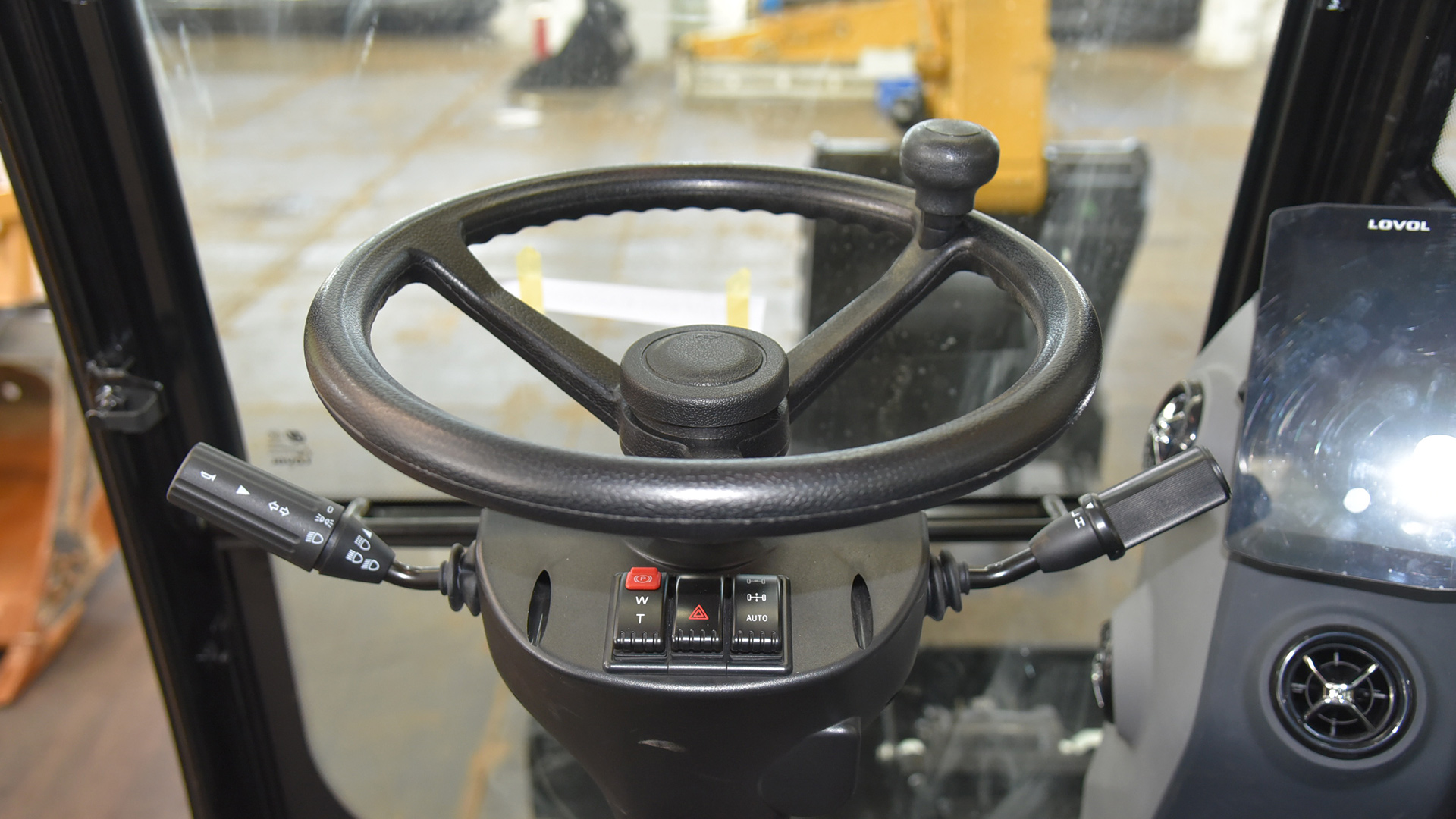

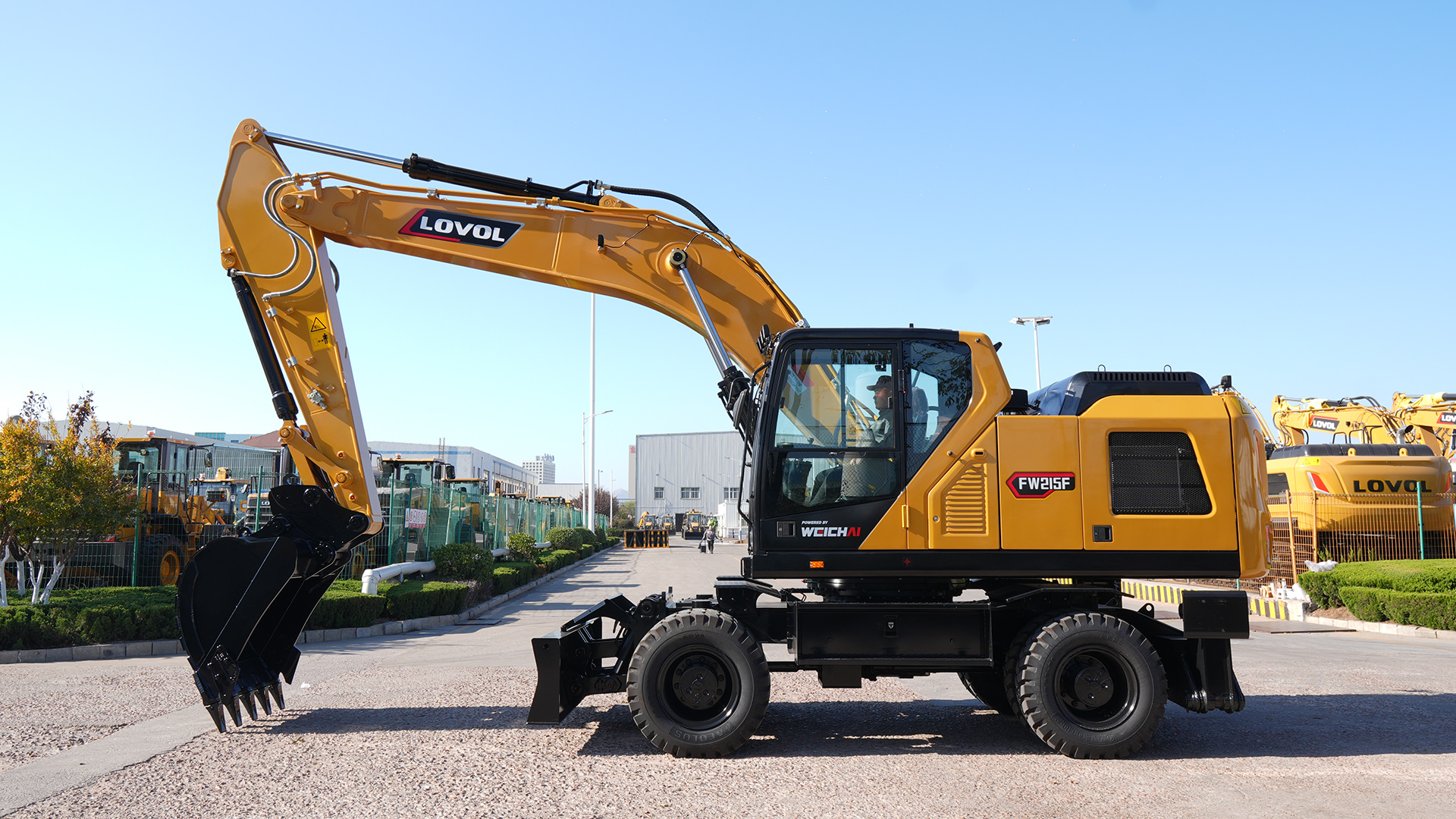

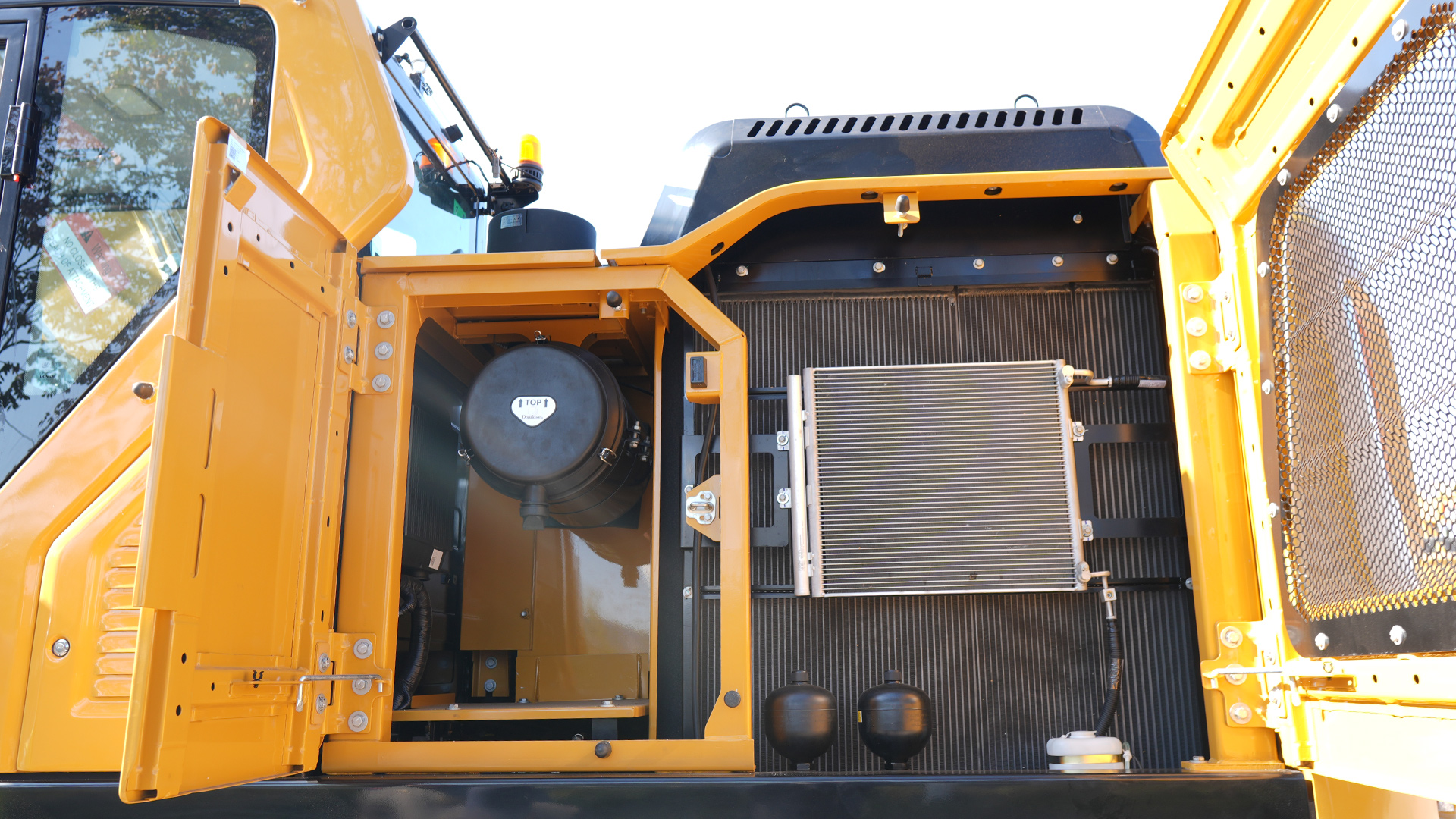

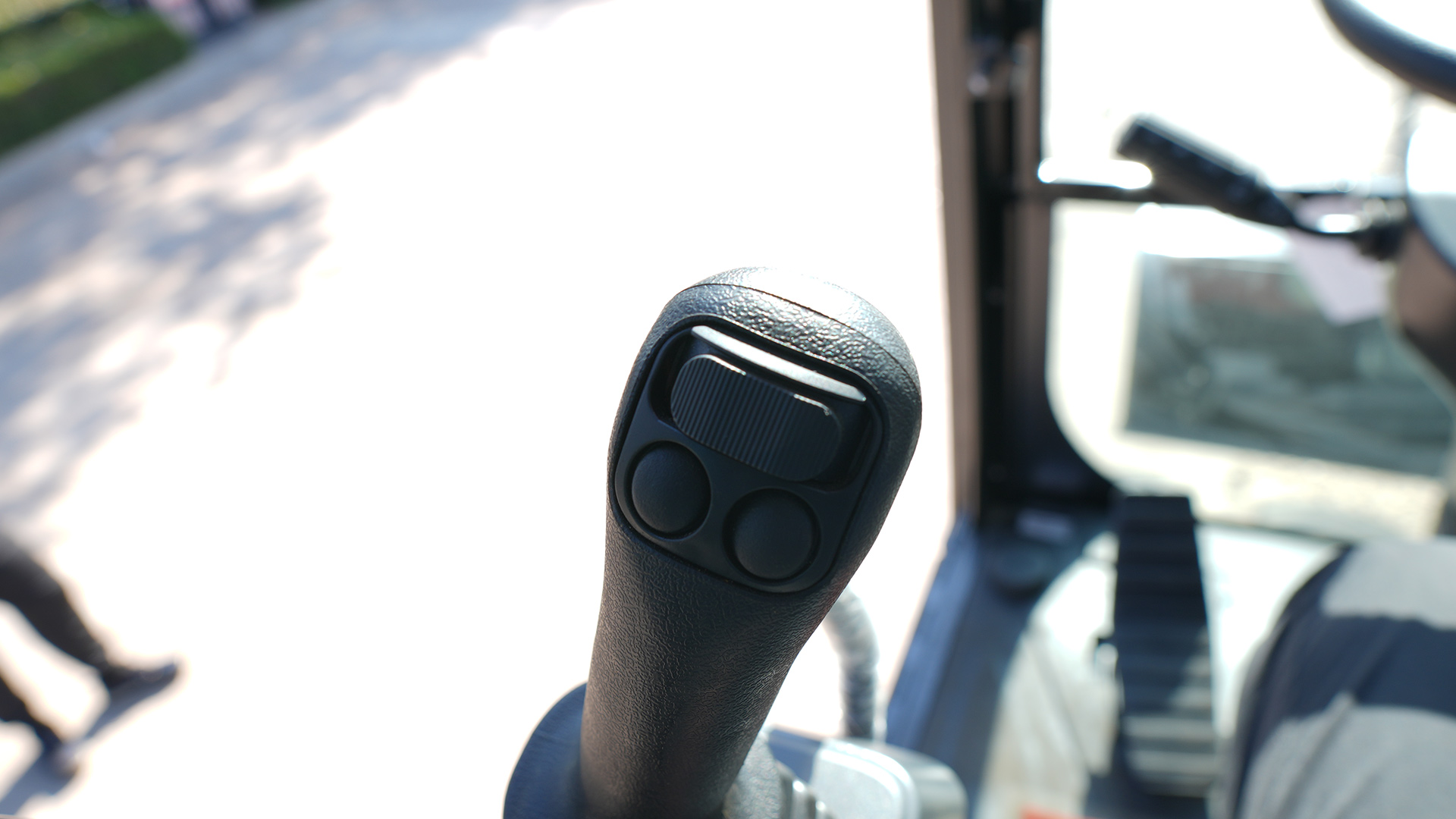

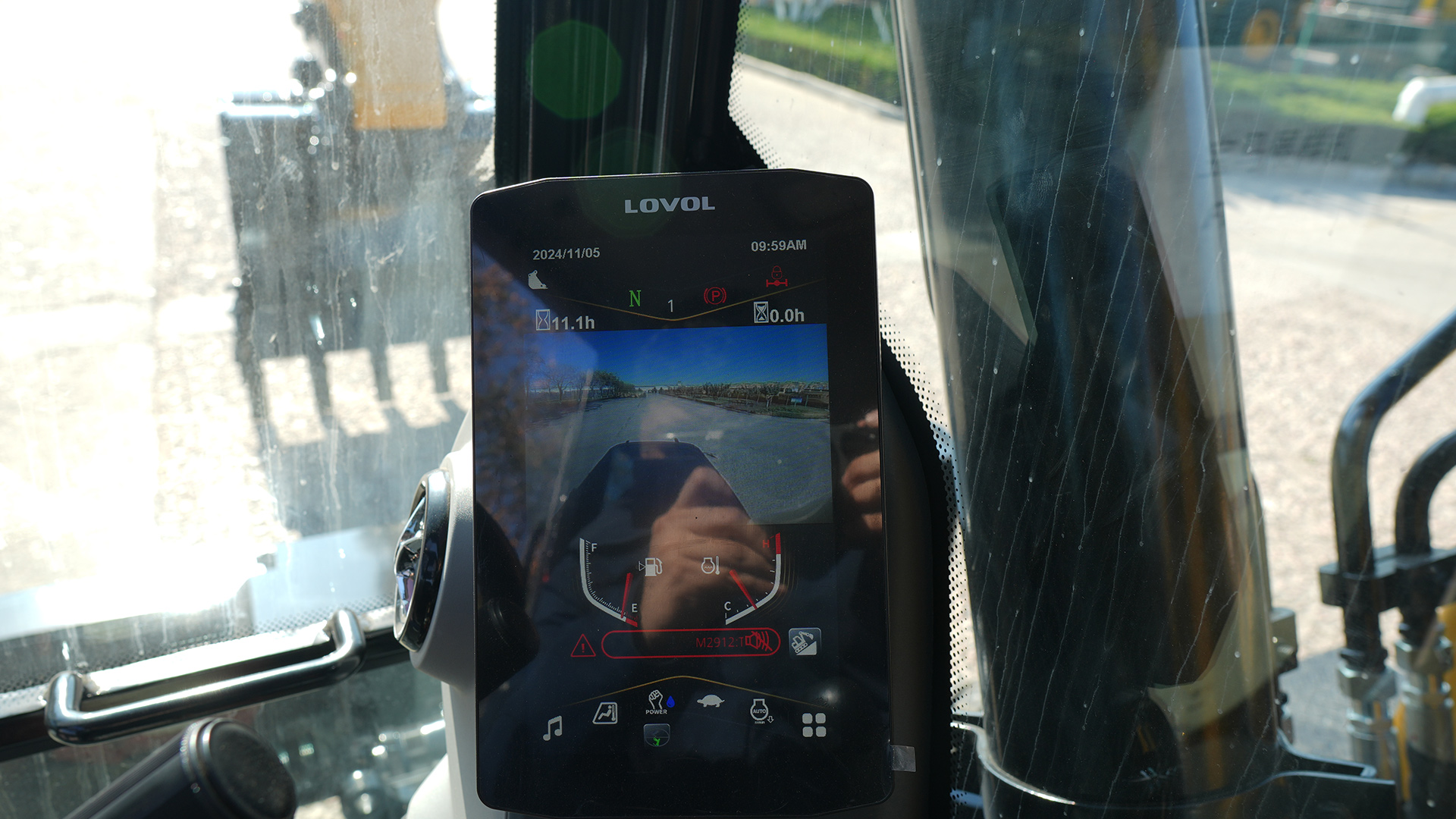

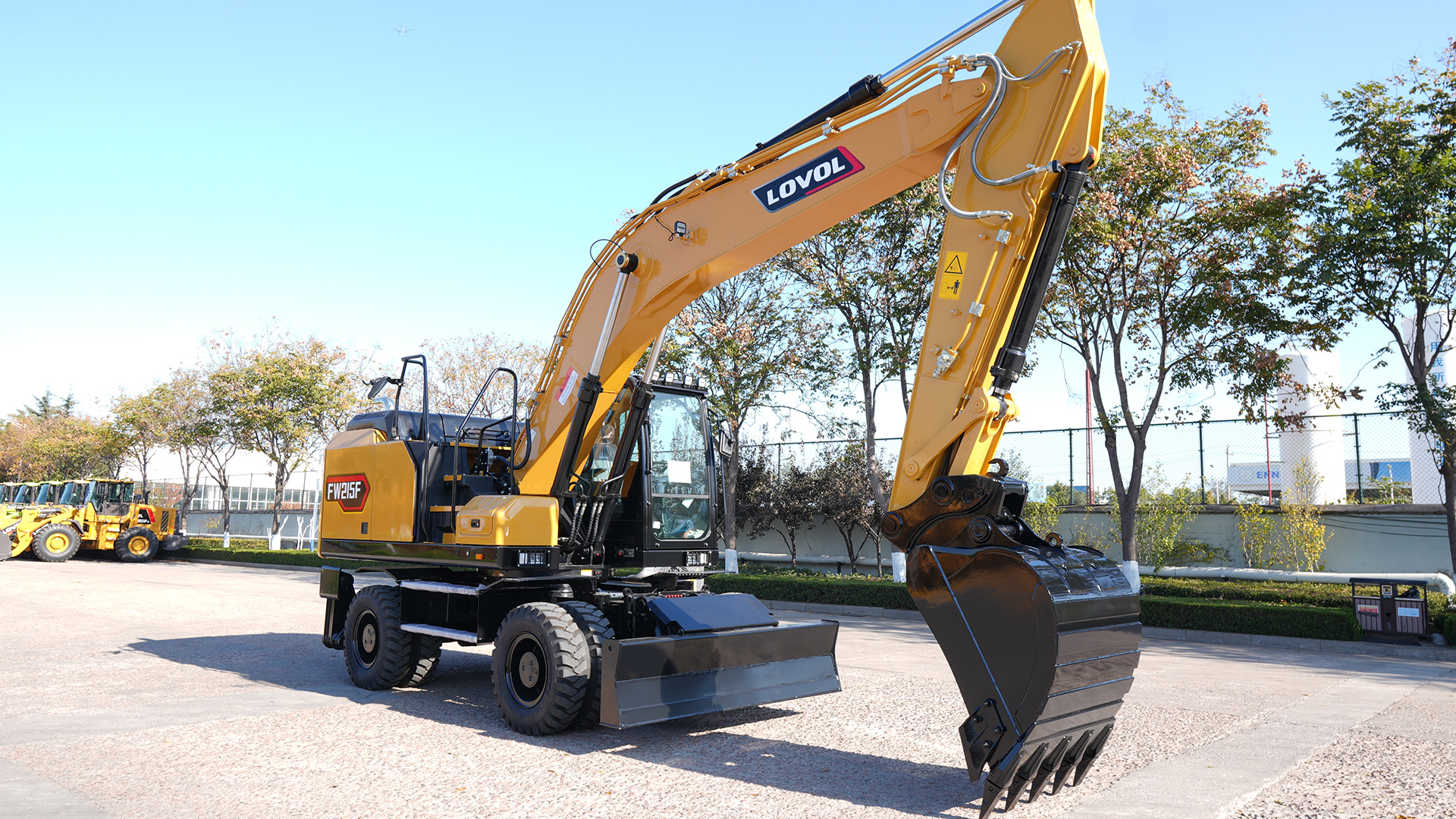

Photos of the
Lovol FW215F
